outdoor distribution boxes

Uesa GmbH offers a diversified range of housing versions:

• Distributor columns construction height 1420/1850mm,
• Columns for general use construction height 1850/2100mm,
• Boards for general use construction height  850/1100mm,
• Cable distribution boards, building connection column

Technical data of the housing

• Material: full polyester, fibre-glass reinforced
• Wheather-resistant, impact resistant and shock-proof, flame resistant,
• Protection class: IP44,
• Profiled surface as posting protection,
• Colour: RAL 7035, light grey,
• Other RAL colours possible,
• Optional: UV protective coating and graffiti resistant coat,
• Cable support rail,
• Depending on construction with swivelling lever handle for profile half cylinder in simple or double closure

In the catalogue on the download area, you will find a general overview of the housing versions with the corresponding information. We will tell you about other equipment versions on request.

Uesa GmbH manufactures meter connection columns  according to technical connection conditions of the corresponding distribution system operator. The meter connection columns can be constructed as direct measurement or measuring transformer (half indirect measure).  For this purpose, distributor housings are available as modular system in different constructions with exchangeable component parts.

Option direct measurement:

• Number of meter positions as required as integrated fixing and connection unit or three-point mounting,
• Distributor field equipped/unequipped,
• Mounting plate of steel plate/synthetic material, equipped/unequipped,
• Special versions according to customer request,
• Comprehensive accessories.

Options measuring transformer (half indirect measurement):

• Number of customer tailings as required,
• Special versions according to customer request,
• Comprehensive accessories.

In the catalogue on the download area, you will find a general view about the housing versions with the corresponding information. We will tell you about other equipment versions on request.

Uesa GmbH produces boards and columns for street lighting according to the technical connection conditions of the corresponding distribution system operator. The street lighting part is completely equipped and wired. The control is done by photoelectric switch and/or clock timer. We offer you distributor housing as modular system in different constructions with exchangeable component parts.

The following options are available for you:

• Without measure or with sub-measurement,
• Customer oriented controls,
• Number of tailings as required,
• Performance reduction,
• boards lighting,
• Service plug socket,
• Cabinet heater with control system,
• Special version.

In the dedicated catalogue in the download area, you will find an overview of the standard distributors for street lighting according to technical specifications of the corresponding distribution system operator. We will tell you about other equipment versions on request.

We fabricate distributors for you for market places, fair ground, campings or marinas according to the corresponding DIN/IEEE. You have the choice between fixed-installation technology or modular technique. In the modular technique, numerous construction versions of our power outlet strips for the 185 mm busbar system are available.

Market place distributor/ fair ground distributor in fixed-installation technology or modular technique

Technical data

• Equipment at customer’s option
• Options: direct measure, measuring transformer according to corresponding technical connection conditions of the distribution system operator or sub-measurement.
• Camping site distributor

Technical data

• Potential feed terminals, also possible for loopthrough
• Main fuse, residual current protective device and circuit breaker switch, certified one phase alternating current
• CEE plug sockets 16 A, 3-pole
• Maximum 3 plug sockets per ground fault circuit interrupter or individual fusing
• Equipment at custmor’s option
• Power outlet strips for 185 mm busbar system

Our power outlet strips can be plugged in market places distributors, fair ground distributors, cable distributors, as well as in special applications.

Technical data

• Same height and width of all power outlet strips
• Easy interchangeable
• Equipment at customer’s option possible.

In the catalogue on the download area, you will find a general view about the housing versions with the corresponding information.

We will tell you about other equipment versions on request.

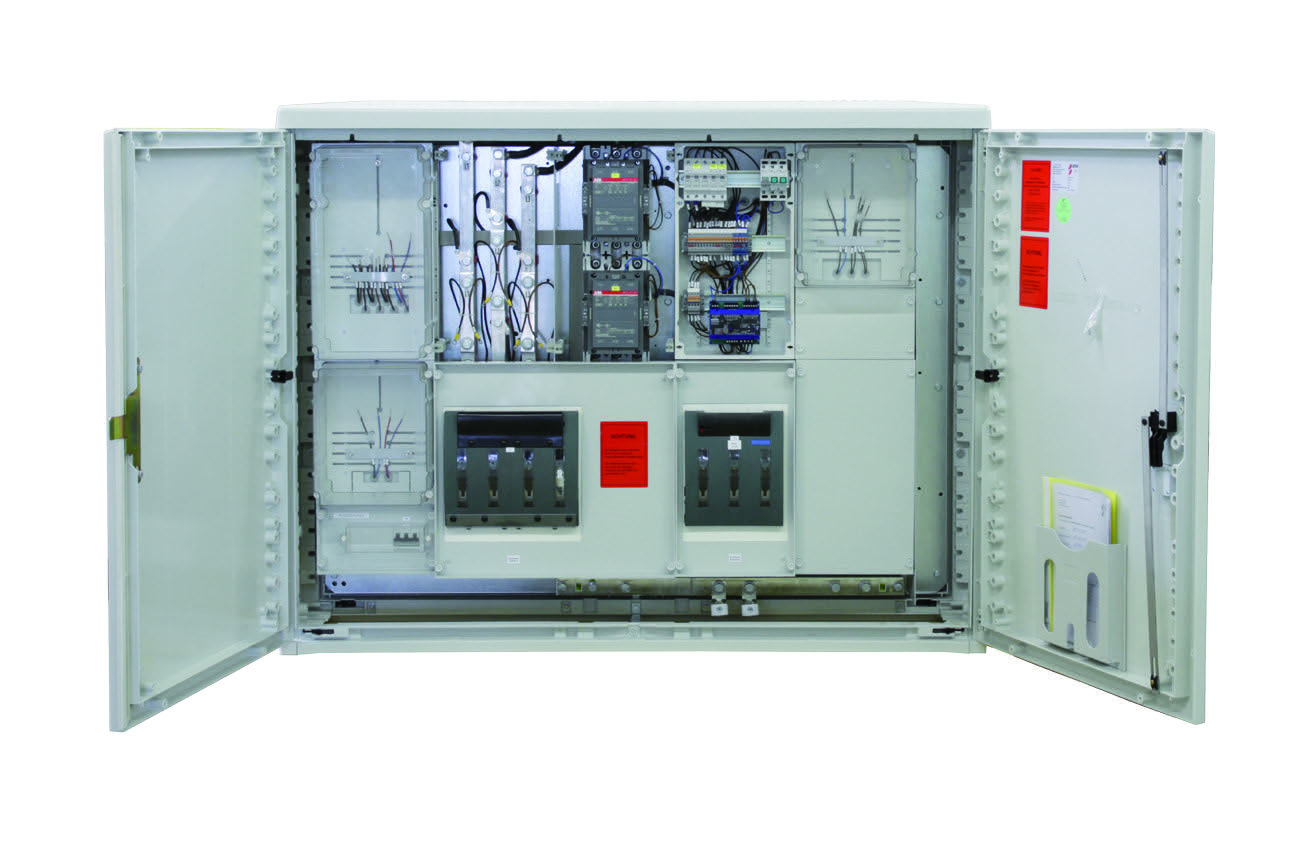

We supply direct measures and measuring transformer (half indirect measures) for photovoltaic systems and other regenerative energies up to a performance of 630 A.

The construction is carried out according to the valid regulations of the distribution system operator and the IEEE AR-N-4105.

Furthermore we also offer distributor boards (optional with monitoring technology) to combine the individual inverted rectifier and transformer transfer stations.

Options

• Network and system protection (voltage, frequency, asymmetry)
• Implementation of the mains security management in the circuit

We submit you an offer. Contact us!
